Industrial facilities consume large volumes of water for processing, cooling, and utility operations, making them prime candidates for sustainable water solutions. Industrial rooftop rainwater harvesting allows factories, plants, and warehouses to capture rainwater from expansive roof areas and convert it into a reliable, cost-saving water resource. This guide covers how the system works, the technology involved, and why it matters for industrial water management.

What is Industrial Rooftop Rainwater Harvesting?

Industrial rooftop rainwater harvesting is the process of collecting rainwater from large industrial roofs and channeling it through filtration systems into storage tanks, process reuse systems, or groundwater recharge structures. With industrial roof areas often extending well beyond 500 square metres, these facilities can harvest significant volumes of water during the monsoon season, reducing dependency on borewells, tankers, or municipal supply.

How the System Works

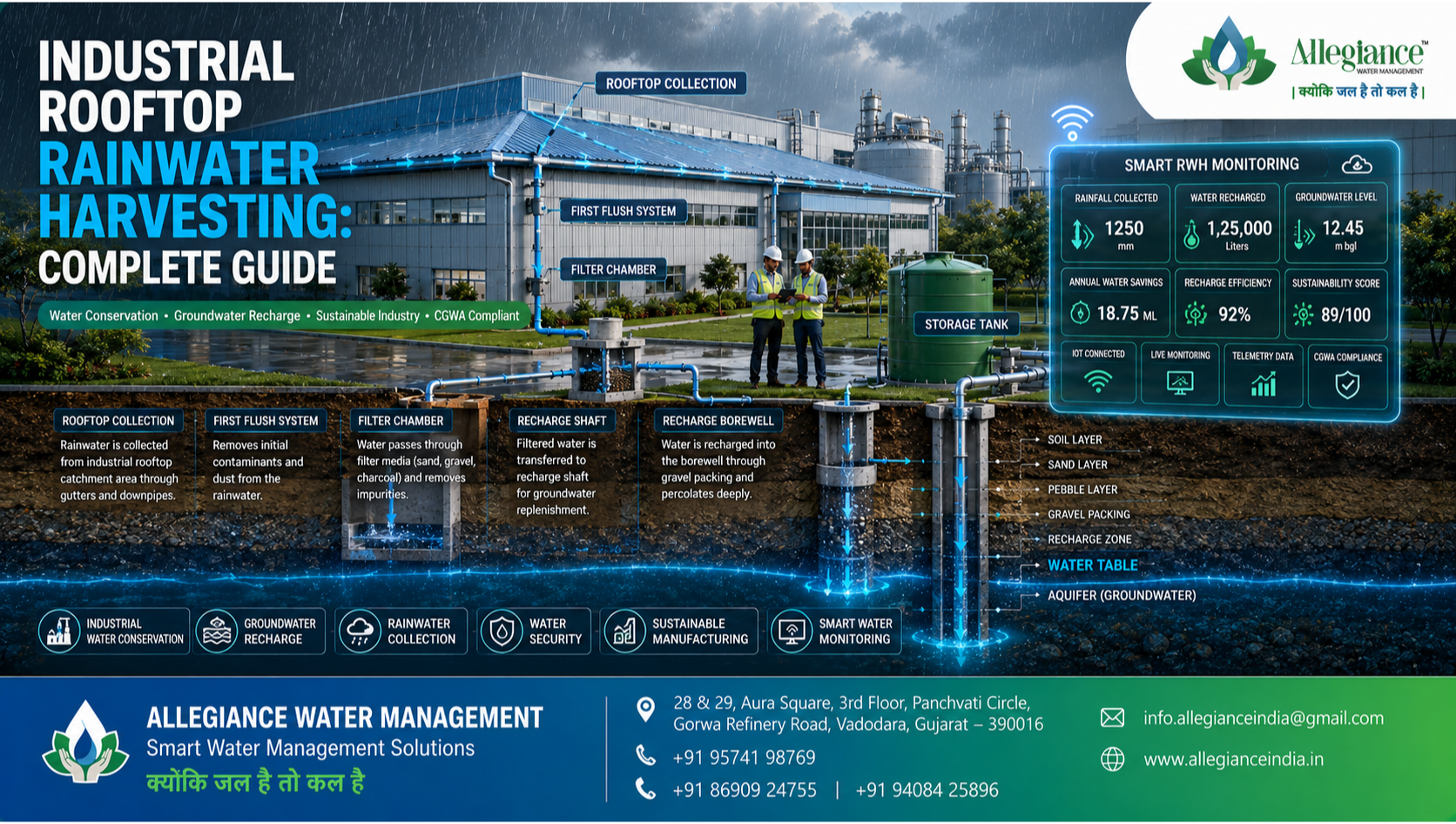

Rainwater collected from industrial rooftops is directed through downpipes into a rainwater filter that removes dirt, leaves, and debris before the water is stored, reused, or recharged. Depending on plant layout and roof size, industrial facilities typically apply one or more of the following methods:

•          Storing filtered rainwater in underground sumps for reuse in processing, flushing, or cooling systems

•          Recharging the borewell by connecting filtered water directly to the casing pipe

•          Recharging the borewell through V-wire technology for roof areas exceeding 100 square metres

•          Diverting collected water to open wells or recharge ponds for aquifer replenishment

For facilities with very large roof footprints, a dedicated recharge well or recharge pond is often more efficient than relying solely on direct borewell connections.

Filtration Technology for Industrial Applications

Industrial rainwater harvesting requires filters built for continuous, high-volume operation. Key technology highlights include:

•          Self-cleaning dual intensity filters for uninterrupted use

•          Filtration efficiency above 90 percent

•          SS-304 multi-surface, food-grade filter elements

•          UV-treated high-density polyethylene filter housing for durability

•          Gravity-powered operation, requiring no external power source

•          Open-ended, non-clog design suited to heavy industrial debris load

Industrial-grade filter units are rated to handle rainfall intensity of up to 75 mm per hour, with discharge capacities ranging from 120 LPM to over 480 LPM depending on the roof area served, from around 120 square metres up to 500 square metres per unit.

Groundwater Recharge for Large Industrial Sites

Many industrial sites integrate rooftop rainwater harvesting with a scientific groundwater recharge system using a V-wire injection well and recharge pond. Run-off water passes through a silt trap to remove sediment, then percolates through layers of gravel, coarse sand, crushed stone, and activated carbon before reaching the aquifer. This approach offers key advantages for industrial operations:

•          Compact, modular design that requires minimal plant footprint

•          Low maintenance with no water clogging problems

•          High filtration performance protecting groundwater quality

•          Reusable land above the system for other industrial purposes

•          Rejuvenation of defunct borewells through recharge techniques

Benefits for Industrial Facilities

•          Reduces reliance on tanker water and municipal supply during peak production

•          Supports CGWA compliance and NOC requirements for groundwater extraction

•          Helps recharge depleting aquifers around industrial zones

•          Lowers long-term operational water costs

•          Strengthens ESG and green building credentials, including IGBC alignment

Planning an Industrial Rainwater Harvesting System

A well-designed industrial rainwater harvesting project starts with a rainwater harvesting feasibility survey and a geohydrological survey to evaluate soil type, aquifer depth, and site topography. Based on these findings, the right combination of filters, storage systems, and recharge wells can be engineered for maximum efficiency, ensuring the system performs reliably across multiple monsoon seasons.

Conclusion

Industrial rooftop rainwater harvesting turns an underused asset, the factory roof, into a dependable water source. With the right filtration technology and groundwater recharge design, industrial facilities can cut water costs, meet regulatory compliance, and contribute meaningfully to long-term water sustainability.
