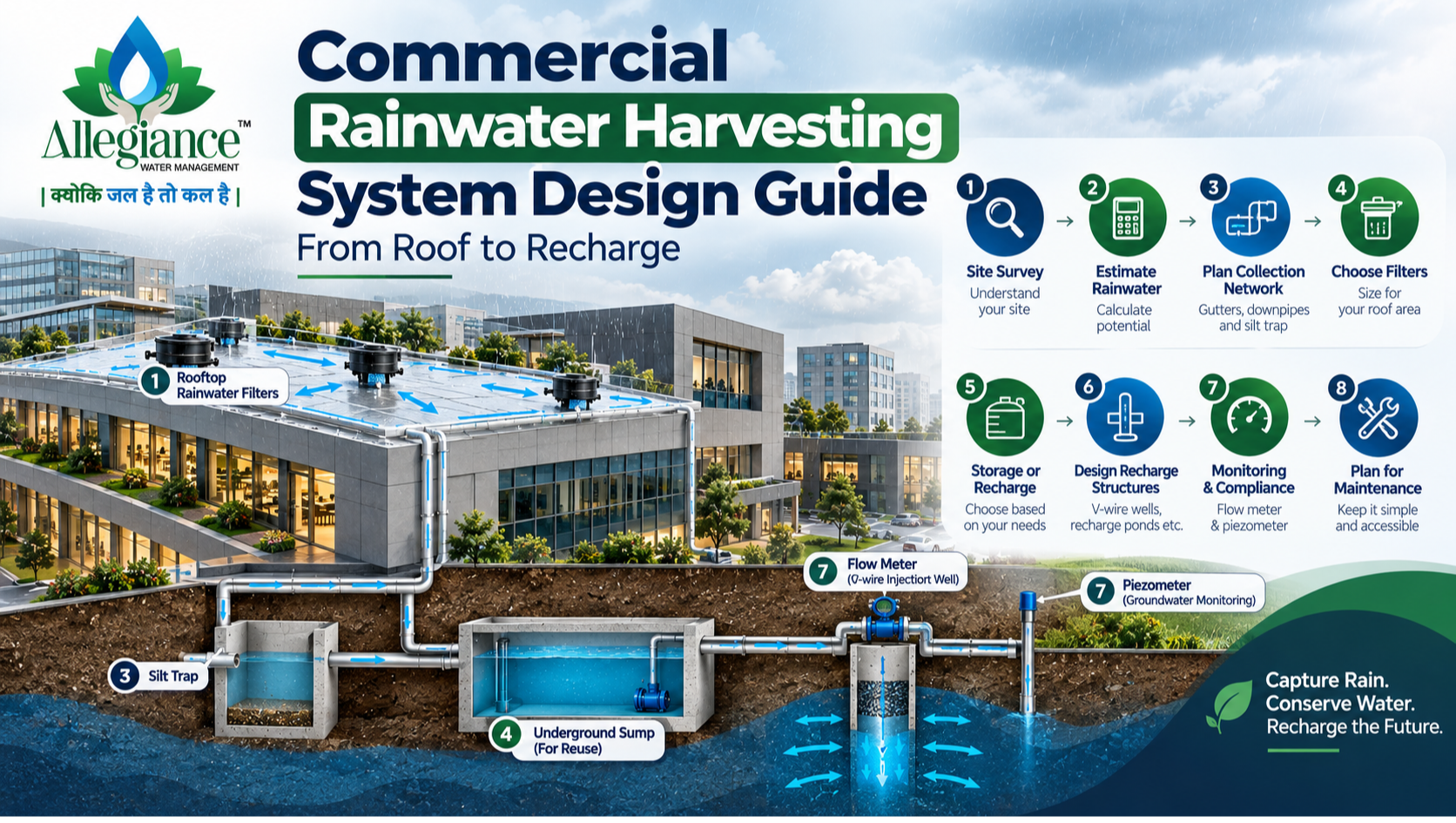

Commercial Rainwater Harvesting System Design Guide: From Roof to Recharge

Most rainwater harvesting systems that disappoint do so for the same reason: the design was rushed. Someone picked a filter, ran a pipe to the borewell, and hoped for the best. A commercial rainwater harvesting system deals with bigger roofs and bigger volumes, so a little design thinking up front pays off for years. This guide walks through how a good design comes together, in plain language.

Step 1: Start With a Rainwater Harvesting Feasibility Survey

Before drawing anything, a designer needs to understand the site. That means measuring the roof and paved catchment areas, noting where the downpipes and drains run, checking any existing borewells or open wells, and finding out how much open space is available for a sump or recharge structure. A geohydrological survey then tells you what the soil and aquifer can actually absorb, which decides the recharge method.

Step 2: Estimate How Much Rainwater Your Roof Can Collect

The basic maths is straightforward: roof area, multiplied by rainfall, multiplied by a runoff coefficient that accounts for losses. Roofs usually have a high coefficient, often taken at around 0.8, though your designer will confirm the right figure for your surface. As a simple illustration, a 1,000 square metre roof receiving 100 mm of rain could yield roughly 80 cubic metres, or about 80,000 litres, in a single heavy spell. Designs should also account for how hard it rains in peak hours, not just the yearly total.

Step 3: Plan the Collection and Conveyance Network

Water needs a clear route from roof to filter to destination. Gutters, downpipes, and channels should be sized for heavy rain so nothing overflows, with gradients that keep water moving. Run-off from yards and paved areas is best sent through a silt trap first, where heavier sediment settles out, before the water moves on through pipes.

Step 4: Choose and Size the Rooftop Rainwater Filters

Large commercial roofs are best divided into zones, each served by its own filter, so no single unit is asked to do too much. Rainy filters come in models for roof areas from about 120 square metres up to 500 square metres per unit, rated for rainfall intensity of up to 75 mm per hour. So a 1,000 square metre roof could be handled by two of the largest units, or a mix of sizes if the roof sections differ. They are self-cleaning, run on gravity, and filter at above 90 percent efficiency, which keeps ongoing maintenance light.

Step 5: Decide Between Storage, Recharge, or Both

This is where the design starts to reflect what the building actually needs. If the complex has steady non-drinking demand, such as landscaping, cleaning, or cooling make-up, an underground sump makes sense, sized to hold a useful share of expected run-off without sitting empty and oversized. If groundwater is the priority, recharge takes centre stage. Most commercial projects end up with a sensible mix of the two.

Step 6: Design the Groundwater Recharge Structures

For recharge, commercial sites commonly use V-wire injection wells, recharge ponds, or rejuvenated old borewells. In a V-wire well, filtered water passes down through gravel, coarse sand, crushed stone, and activated carbon, then through the V-wire screen into the weathered zone and aquifer. Spreading recharge across a few smaller points, rather than relying on one, is usually more reliable and easier to maintain.

Step 7: Build in Monitoring for CGWA Compliance

A good design plans for measurement from day one. A piezometer near the recharge point shows how groundwater responds, while a CGWA-compliant flow meter records what the building draws. Having these in the plan makes NOC applications and renewals far smoother, because the evidence already exists.

Step 8: Make Maintenance Easy From the Start

The best systems are the ones people can actually look after. Give silt traps accessible covers, keep filters reachable before the monsoon, and leave inspection points on recharge wells. A simple yearly checklist agreed at design stage is usually all it takes to keep everything working for many seasons.

Common Design Mistakes in Commercial Rainwater Harvesting

• Designing for average rainfall instead of peak intensity

• Skipping the geohydrological survey and assuming the ground will absorb everything

• Sending all run-off to one filter or one recharge point

• Leaving out the silt trap, which shortens the life of recharge structures

• Oversizing storage that the building will never use

• Forgetting about access for cleaning and inspection

Final Thoughts

Good commercial rainwater harvesting design is less about clever engineering and more about asking the right questions early: how much water, where does it go, who maintains it, and how will we prove it works. Get those answers right, and the system quietly does its job every monsoon.
